- Place of Origin: Guangdong, China (Mainland)
- Brand Name: I-panda
- Model Number: I-P-Master-80A
- Application: Charger Controller
- Rated Voltage: DC 12V/24V/36v/48V Auto Work
- Maximum Current: 80A

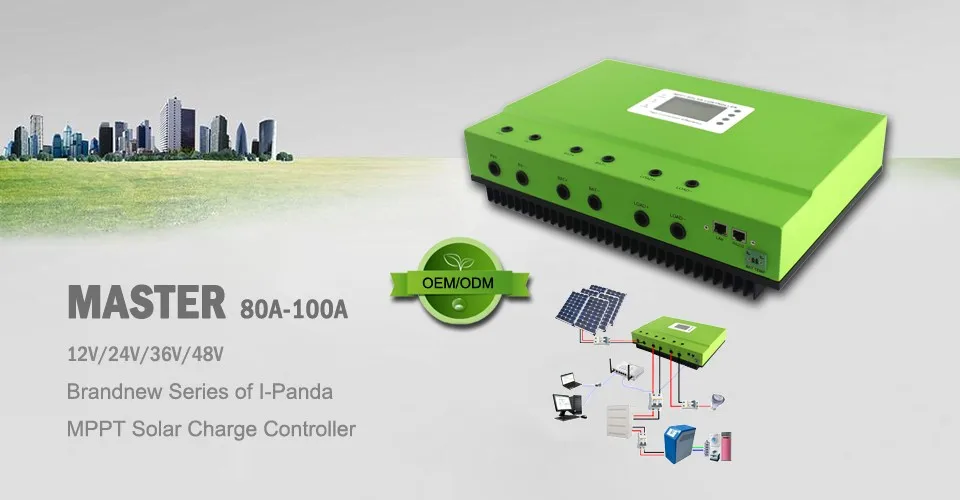

- Product name: 80amp solar charge controller
- Conversion efficiency: 95%~99%
- charge method: 3 stages
- Maximum PV input voltage: DC 150V
- communication port: RS 232 and LAN
- Display: LCD,LED
- Color: green,blue,white
- N.W: 7.1kg
- Box Weight: 8.5kg
- products size: 420*280*102
Packaging & Delivery
|Packaging Details:||1 piece per carton
Net weight: 7.1 kg
Gross weight: 8kg
|Delivery Detail:||Shipped in 3 days after payment|
1. MPPT charge mode,conversion efficiency up to 99%;
2. Maximum PV input is DC 150V;
3. Support all kind of batteries, non-normal type can be set on PC software;
4. Three stage charge mode: fast charge,constant charge,floating charge);
5. With temperature sensor;
6. Anderson connection port, avoide reverse connection;
7. RS232 and LAN communication port, free PC software;
8. Intelligent design,the device can be upgraded online;
9. The devices can suffer the temperature not less than 105°C;
10. Perfect protection:input lowvoltage,input overvoltage,input polarity reversal,
output over voltage,short-circuit over temperature;
11. Unlimited parallel;
12. 5 discharge mode;
13. LCD and LED show all kinds of parameter;
14. CE,ROHS,FCC certifications approved.The device also can support to pass the other certifications;
15. 2 years warranty and 3~10 years extended warranty service also can be provided.
MPPT controller Model:
MPPT(Maximum Power Point Tracking)
3 stages: fast charge(MPPT),constant voltage, floating charge
Soft Start Time
PV Modules Utilization Rate
The battery voltage is not in above range when the controller is switched on
PV Input Characteristics
MPPT Working Voltage and Range
Input Low Voltage recovery Point
Input Over voltage Protection Point
Input Over voltage Recovery Point
Max. PV Power
Selectable Battery Types (Default type is GEL battery)
Sealed lead acid, vented Gel, NiCd battery (Other types of the batteries also can be defined)
Chose COM communication port
Set IP and Gate address for controller and solar eagle ;
Then chose TCP communication
Measurement DxWxH (mm)
Packing DxWxH (mm)
Blue, Green, White (optional) or OEM
1.2 years warranty, lifelong technical assistance.
2. Conditions and Terms
2.1 The warranty starts from the delivery date from our factory.
2.2 During the warranty, any defective product will get repaired or replaced for free.
2.3 The warranty is unavailable for those products which are broken by the violence or the carelessness or
repaired or altered without the authorization.
3. Lead Time
3.1 Sample orders will be delivered from our factory within 5-7 working days.
3.2 General orders will be delivered from our factory within 7-15 working days.
3.3 Big orders will be delivered from our factory within 25 working days at most.
4.1 Samples By EMS,DHL,FedEx or other express.
4.2 Wholesale orders by our forwarding agent(by air or by sea).
4.3 Wholesale orders by your own forwarding agent.
5. OEM and ODM
5.1 This page shows basic data, we can provide OEM, ODM service for you.
