Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: I-Panda
  • Model Number: I-P-MCS-12V/24V/48V 20A/30A
  • Application: Solar System Controller
  • Rated Voltage: 12V/24V/48V
  • Maximum Current: 20A/30A
  • Item: MPPT
  • Communication port: Software for monitoring via PC
  • Color: Blue/Green
  • Size: 270*185*90 mm
  • Weight: 2.1KG
  • Safety: CE, RoHS, PSE,FCC
  • Warranty: 2 years
  • Auto recognition: Yes
  • Conversion efficiency: 99%
  • Display: LED, LCD display

Packaging & Delivery

Packaging Details: Packaging Detail: 1pcs/color box, 4pcs/carton
Delivery Detail: 1-3 working days for samples;large order depend on the quantity

99% peak efficiency 20a 25a 30a 40a 48v mppt charge controller







Description:



This is a charge controller 20A ~30A that have automatic MAX. power point tracking function with high efficiency that almost 30%~60% higher than traditional charge controller. It also features the functions of system voltage auto recognition, wide rang of PV input, charge for all kinds of battery, automatic discharge control, RS232/LAN communication function and so on. It is very high-end product for solar market.



Features



1.MPPT charge mode,conversion efficiency up to 99%

2.12V/24V/48V system auto recognize;

3.Wide range of PV input with max. is DC150V.

4.Memory function,Save setting function: date,time,generating capacity record and so on .

5.Charge mode: 3 stages (fast charge,constant charge ,floating charge) .It prolongs service life of the batteries .

6.Discharge mode: ON/OFF mode, double time control mode,PV voltage control mode ,PV voltage+time delay mode and so on .

7.Selected battery types: sealed lead acid, vented, gel, NiCd battery. Other types of the batteries can also be defined.

8.Most information could be provide by LCD and LED like: model no.,PV input voltage,battery type,battery voltage,charging current,charging power,working status and so on. Also customer's information like company name,website and logo can be added into Solar Eagle software.

9.RS232 and LAN communication port. IP and Gate address could be user define it satisfy global area.And communication protocol can be provided to manage all information.

10.The upper computer software is displayed in 11 languages, it could show work status and be set parameters of the discharge system.

11.With intelligent design,the device can be upgraded online lifelong.

12.Compliance with the 2002/95/EC environment protecting demand,doesn't include the Cadmium, hydride and fluoride etc material

13.Equipment integrity: controller + CD-ROM(microcomputer software) + communication wire + temperature sensing wire + Anderson terminals;

14.CE,ROHS certifications approved.

15.2 years warranty. The service life is designed to use for 10 years in theory. Extended 3~10 years warranty service also can be provided.



Parameter:



MODEL:I-P-SMART2-20A/25A/30A -SERIES20A25A30A
Charge ModeMaximum Power Point Tracking
Discharge ModeIntelligent control
System Type12V 24V 48V Automatic recognition
Soft Start Time ≤10S
Conversion Efficiency≥96.5%,≤99%
PV Modules Utilization Rate≥99%
INPUT CHARACTERISTICS
MPPT Working Voltage and Range12V systemDC18V~DC150V
24V systemDC34~DC150V
48V systemDC65~DC150V
Max. DC VoltageDC160V
Input Overvoltage Protection PointDC150
Input Overvoltage Recovery PointDC145V
Max. PV Power12V system286W357W429W
24V system572W715W858W
48V system1144W1430W1716W
CHARGE CHARACTERISTICS
Selectable Battery TypesSealed lead acid, vented, Gel, NiCd battery(Default type is GEL battery)
Other types of Battery Setting Constant charge User-defined constant/floating charge voltage range between DC10V~DC15 ( based on 1PCS 12V battery )
Floating charge
Battery Type Setting 12V/24V/48V SYSController and upper monitor
Charge Type12V/24V/48V SYSThree Stages :Fast charge/Constant charge/Floating charge
Rated Output Current20A25A30A
Current-limiting Protection25A30A35A
DISCHARGE CHARACTERISTICS
Setting Control       Controller or LAN
Max discharge current 30A
Max discharge power420W840W1680W
Discharge protection fuse 40A*2
Double-time controlOn in morning ,off in morning / On in night ,off in night
ON / OFF mode ON / OFF
PV voltage controlPV voltage on,PV voltage off
PV voltage / time delay controlPV voltage on,time delay off
Discharge voltage protectionOutput off when it under setting voltage; Factory set is 10.5 .( Note : set based on 1 battery )
COMMUNICATION PORT
RS232 CommunicationChose COM communication
LAN CommunicationSet IP and Gate address for controller and solar eagle ;Then chose TCP communication
Short-circuit ProtectionRecover after eliminating the Short-circuit fault, no problem for long term Short-circuit
Temperature Protection95°C
Temperature protectionAbove 85°C,decrease the output power, decrease 3A per degree.
OTHER PARAMETERS
Noise≤40dB
Environment ProtectionWorld brand raw materials. Compliance with EU standards. Meet the 2002/95/EC without cadmium hydride, fluoride, peculiar smell and toxic substances.All rated temperature of electrolytic capacitors not less than 105°C
PHYSICAL
Measurement DxWxH (mm)270*185*90
N.G(kg)2.1
G.N(kg)2.4
ColorBlue/Green (optional)
SafetyCE, RoHS, PSE,FCC
EMCEN61000
Type of Mechanical ProtectionIP21



Certificates

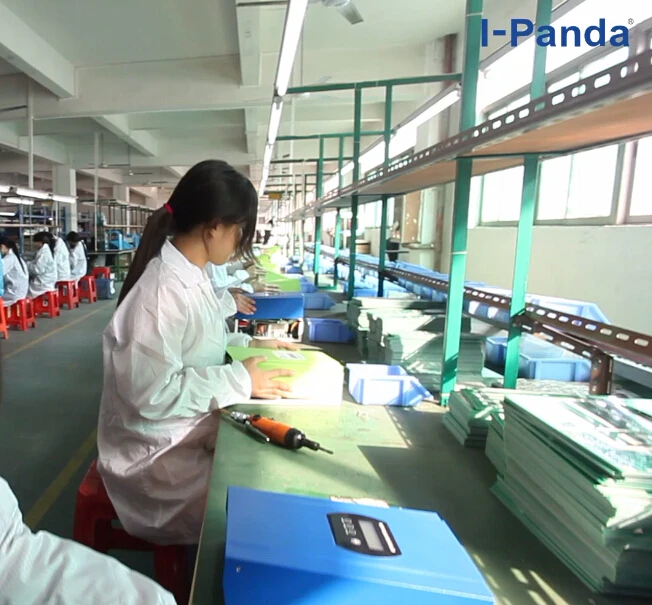

Company&factory
